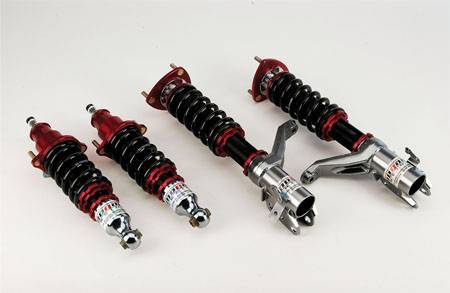

2001-2004 Honda Civic Megan Racing Street Series Coilover Damper Kit

MR-CDK-HC01
Pricing: $1,099.00

Qty:
Free Shipping!

Description

2001-2004 Honda Civic Megan Racing Street Series Coilover Damper Kit

Megan Racing street series coil-over dampers are the ultimate upgrade to your track or street car. With separate spring perch height and shock length adjustment, as well as 32 levels of damper force adjustment, you are able to retain full suspension stroke and fine tune your suspension characteristics.

The single damper adjustment knob which is built-in at the top of the damper allows for easy adjustability to compression and rebound settings with easy access. Whether your mechanical skills are that of a professional certified mechanic or that of an automotive enthusiast with amateur skills, adjustments to these coil-overs are simple to tune according to your driving style and desired comfort level. All of our dampers are capable of handling a +2kg/mm or -2kg/mm change in spring rates to further tune your suspension to your desired handling characteristics.

Height adjustments are made with separate CNC machined locking spring perches for smooth and accurate adjustment with a separate damper shock length adjustment to retain full-stroke and allow for precision suspension tuning. The wide range of allowable ride-height adjustments allows you to make adjustments from an aggressive stance with a more aggressive ride height, to a fine tuned suspension system which uses the full potential of your vehicle’s handling capabilities.

On applications utilizing strut-type suspension designs, the Megan Racing damper kits come with upper pillow-ball mount camber plates which are adjustable and allow you to easily tune your camber. This enables you to adjust your cars ride height and still adjust the camber to improve handling, vehicle predictability and tire wear, a nice feature for any situation, whether it is on the track or on the street. This improved level of adjustability will give you a competitive edge over other suspension setups.

The quality and durability of Megan Racing damper kits are unmatched. Our springs are constructed of SAE-9254 cold-wound steel which are then tested over 500,000 times by a compression inspection. Our shock absorbers are constructed from highly durable steel. Both of these methods of construction give our product a deformation rate of less than 5%, and our sophisticated surface coating which adds to the strength of our damper kits gives us the confidence to stand by our product with our strong warranty.

Spring Rates:
Front: 62mm ID, 180mm length, 10 kg/mm
Rear: 62mm ID, 140mm length, 12 kg/mm

Damper Specs:
Front: 120mm stroke, 260mm length, M2 valving code
Rear: 75mm stroke, 180mm length, A2 valving code

Specifications:

  • 32 Levels of adjustable damper strength
    • 1-8: Suggested for track use
    • 9-16: Suggested for mountain/aggressive use
    • 17-32: Suggested for common street use
  • Aggressive spring rates
  • Single-cylinder design
  • Adjustable ride height
  • Aluminum brackets
  • Lowering rates of 2" front and 1.7" rear

On later model year Civics during the 2001-2005 production run, Honda increased the front strut/crash bolt size from M14 to M16. Because of this, we have increased the diameter of the front lower bracket bolt hole size to accommodate for these revisions. We have also included an M14 to M16 adapter for use when necessary.

Not all applications include camber kits. Will not fit Si models.



All Megan Racing products are deemed for "off-road use only"-- please reference your local state vehicle code regulations regarding imposed modification laws.







Please call us to stock check first.
