Supported ECUs
Vehicle ECU Part Number FlashProMiniPart Number
2009-2014 2.4 US TSX MT
RL5-A02-A04, A07 FP-TSX-US
2009-2014 2.4 US TSX AT
RL5-A52-A54, A56 FP-TSX-US
The ECU part number is located on the ECU, which is located in the footwell between the driver and passenger. You will need to remove a plastic cover in order to see the sticker containing the part number.
IF YOU HAVE AN AUSTRALIAN OR OTHER MARKET ACCORD CU2, you may add on a USA spec ecu to your order. We do not guarantee 100% compatibility of a USA ECU in other market cars.
Features
FlashProMinifeatures
Programmable ECU interface.
Connects via OBDII diagnostic port.
USB 2.0 connection
Works with Laptop or Desktop
No ECU modification necessary.
Live tuning
20 hours on board datalogging memory.
FlashProManager Windows software.
Check and clear diagnostic codes.
Customizable laptop gauges.
Readiness codes and smog check status.
Dual calibration storage - upload from one of two calibrations stored in the FlashPro.
TSX tuning features
Ignition, fuel, idle speed, table editing.
VTEC window.
Rev and launch limiters.
Map tracing & lambda overlay.
Expanded fuel, ignition & cam angle tables for forced induction.
4 bar MAP sensor support (43 psi).
Support for larger injectors.
Injector latency / dead time.
Individual cylinder fuel & ignition trim.
Individual cylinder knock datalogging
Starting calibrations for intake, headers & larger injectors.
Boost control by RPM and gear
For a more detailed feature lists see the FlashProMinihelp file.
What do I need to run the software?
Laptop or desktop
32 or 64 bit Windows XP, Vista or 7*
USB 2.0 port
Internet Access
* The software will also work on Intel based Macs running Bootcamp with the above specifications. Has been extensively tested and works well. Parallels and VMWare virtualization software has been tested with no problems found to date.
Training videos
Hondata has put together a series of training videos to describe the function and use of the FlashPro. Some of the videos were shot using pre-release software. Some displayed functions have changed slightly. View the videos in High Definition Full Screen to view the screen shots.
FlashProMiniIntroduction
Hondata's new generation programming tool for the TSX.
FlashProMiniGetting started
This video covers the installation the FlashProMiniManager software, the USB drivers, software registration and upload of a calibration.
Live Tuning
Live tuning gives you the ability to tune your Honda or Acura on the fly without switching off the engine. Live tuning simplifies part throttle tuning and significantly reduces the time and cost of tuning your car.
Datalogging and Air fuel ratios
A look a the extensive datalogging capabilities of the FlashProMiniand the many ways in which to examine your engine data. We touch on the datalogging of the air fuel ratios and how you can use it to adjust your tuning.
Questions and Answers
- Do I need to send my ECU to Hondata?
No. Your ECU does not need to be modified for FlashPro.
- How does this work for the 04-06 TSX?
FlashProMinidoes not work with the 04-06 ECU, so an 07/08 ECU is required. The Honda part numbers are 37820-RBB-A21 for the manual and 37820-RBB-A71 for the automatic. They sell for a little over $600. The 07/08 ECU plugs in and mounts where original ECU is located. Hondata provides a wiring adapter for $50 which links the ECU programming pins to the DLC. After the ECU is installed a Honda dealer will need to match the immobilizer to the new ECU.
- Does it improve rev hang?
Yes. Revs will drop sooner after gear change.
- Is there a rebate if I already have a Reflash
No. As the 04-06 TSX requires a new ECU you are free to sell your reflashed ECU.
- Are there base calibrations?
Yes, for common US intakes and injectors ranging from 310-1300cc.
- Can it eliminate the second o2 sensor?
Yes. The secondary oxygen sensor is used to monitor the catalytic converter efficiency and assist with closed loop operation. For off road racing use in which a catalytic converter is not desirable, the secondary oxygen sensor can be disabled using the FlashProMiniManager software without any negative affect on the tuning or operation of the car.
- Do I need dyno tuning?
It shouldn't be necessary for common part combinations (intake, exhaust), but you still have the option of custom tuning if you wish to get a little more. Camshafts and race headers probably will need tuning to get the most of the them - it will depend on the manufacturer. Dyno tuning is highly recommended for forced induction.
- What about smog?
According to US and CA law the FlashProMiniis for off road use only. However, if you did smog with you would find the readiness codes supported and complete as long as your emissions systems are intact and working.
- Will this work on more than one vehicle?
The FlashProMiniis locked to one vehicle. It can be unlocked and transferred to another vehicle by returning the ECU to stock.
- Can I share the calibrations I make for my car?
Yes.
- Do I need the laptop in the vehicle to reflash the ECU?
No. The FlashProMinican upload either with or without a laptop.
- So does that mean 1 unit Hondata FlashProMinican only work with one ecu or car only? Which mean I can't buy one FlashProMiniand use it together with a few of my buddies TSX?
One ECU and vehicle at a time. You can unlock the FlashProMiniby returning the ECU to stock, and then transfer to another vehicle.
- Any option of immobilizer control?
The immobilizer can not be disabled. We've implemented a number of features designed to protect the owner of the vehicle from theft, and one of these is not to allow the immobilizer to be disabled.
-Will this support a 64-Bit Windows Vista and Windows 7?
Yes.
- Can it control nitrous?
No. However, you can at least control the ignition timing to make nitrous safer.
- Will dealers need a software license?
No. Every FlashProMiniwill come with the full tuning software FlashProMiniManager.
100% of the functionality of the classic FlashPro in a smaller, more convenient product!
The Hondata FlashPro Mini is a compact version that replaced the standard FlashPro, designed to provide the same tuning capabilities but in a smaller and more portable format.
Key features and improvements that come with the FlashPro Mini:
Compact Design: The Mini version is smaller and more lightweight, making it easier to carry and install in tighter spaces.
Same Tuning Features: It retains the core functionality of the original FlashPro, allowing users to upload custom tunes, modify engine parameters, and access real-time data logging.
Enhanced Portability: Its design makes it convenient for on-the-go tuning and monitoring, appealing to enthusiasts who participate in events or track days.
User-Friendly Software: Like the standard FlashPro, the Mini comes with the FlashPro Manager software for easy tuning and data monitoring.
Compatibility: It supports a wide range of Honda and Acura models, just like its predecessor.

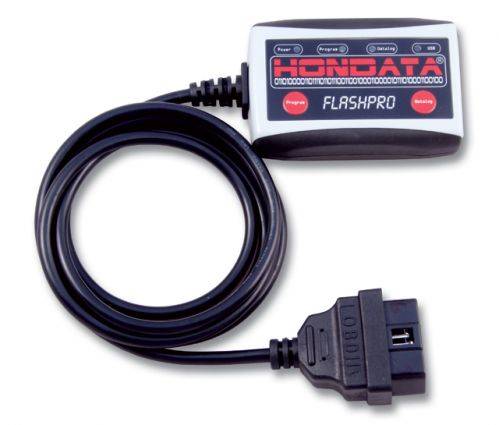

The Hondata FlashPro is an ECU tuning device designed specifically for Honda and Acura vehicles. It allows users to modify their engine's parameters to improve performance, fuel efficiency, and overall drivability. Here are some key features:
Custom Tuning: FlashPro enables users to upload custom tunes, adjust fuel maps, ignition timing, and boost levels, among other settings.
Real-Time Monitoring: It offers real-time data logging and monitoring, allowing users to track engine metrics such as RPM, air-fuel ratio, and more while driving.
User-Friendly Software: The accompanying FlashPro Manager software is designed for ease of use, providing intuitive access to tuning features and options.
Multiple Calibration Options: Users can store multiple calibration files, making it easy to switch between different tunes based on driving conditions or performance needs.
Wide Compatibility: It supports a range of Honda and Acura models, making it a versatile option for enthusiasts.
Bluetooth Enabled: From Jan 1 2014, all FlashPros shipped from Hondata include Bluetooth for display and interaction with an Android device.
The Hondata FlashPro is a popular choice for those looking to enhance their vehicle's performance while maintaining the ability to revert to stock settings if needed.
Features
The FlashPro allows full user tuning and data logging of selected models. It includes Windows-based software called FlashPro Manager.
The FlashPro connects from your laptop's USB port to your vehicle's diagnostic port to provide real-time programming, a variety of calibrations, and extensive data-logging capabilities.
Programmable ECU interface.
Connects via OBDII diagnostic port.
USB 3.0 C connection
Works with Laptop or Desktop
No ECU modification is necessary.
Live Tuning
20 hours on board datalogging memory.
Security Password.
FlashProManager Windows software.
Check and clear diagnostic codes.
Custom laptop gauges.
Dual calibration storage - upload from one of two calibrations stored in the FlashPro
What do I need to run the software?
Laptop or desktop
32 or 64 bit Windows XP, Vista, or newer
USB 2.0 port
Internet Access
* The software will also work on Intel-based Macs running Bootcamp with the above specifications. Has been extensively tested and works well. Parallels and VMWare virtualization software has been tested with no problems found to date.
Learn more about FlashProMini RACE
