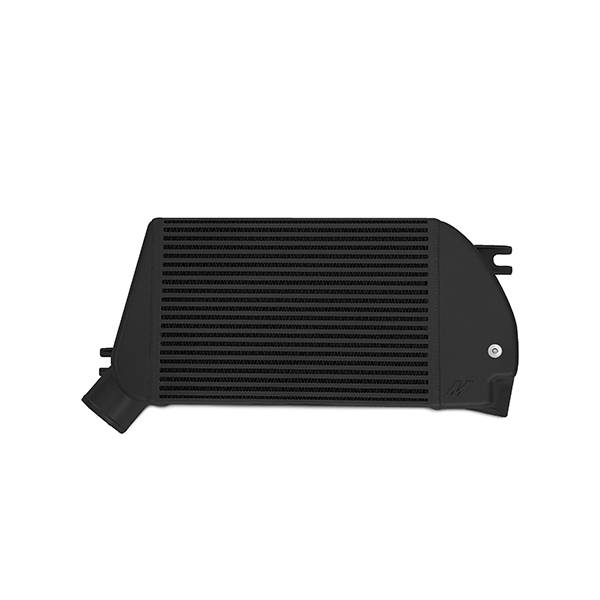

2015+ Subaru WRX Mishimoto Performance Top-Mount Intercooler - Black Cooler

Subaru WRX Performance Top-Mount Intercooler, 2015+

Mishimoto is expanding their line of 2015 WRX parts! Are you looking for a way to reduce high intake temperatures on your stock or modified 2015 WRX? The solution is the Mishimoto direct-fit 2015 WRX top-mount intercooler kit engineered specifically for the 2015+ Subaru WRX. The stock 2015 WRX top-mount intercooler is prone to heat soak during repeated wide open throttle pulls and during track use. Mishimoto engineers spent months designing the 2015 WRX parts and testing this new 2015 WRX top-mount intercooler to ensure optimum performance on both the street and track. This 2015 WRX intercooler utilizes durable cast aluminum end tanks TIG-welded to a highly efficient, dense bar-and-plate core. The Mishimoto 2015 WRX intercooler has a 4" thick core and a total volume of 625 in3, making it one of the largest top-mount intercoolers you can buy.

Thanks to this volume and a very dense offset fin pitch, we are able to optimize heat transfer and support your 2015 WRX from stock up to 500 whp. This WRX intercooler endured rigorous testing, showing a 35°F temperature drop as well as a +15 whp and +8 wtq bolt-on power increase for our test vehicle equipped with a Mishimoto 2015 WRX downpipe and stage 2 EcuTek tune. Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under 1 hour.  An application-specific air splitter is included with the top-mount intercooler to help divert the maximum amount of air into your Mishimoto 2015 WRX top-mount intercooler.

The WRX top-mount intercooler kit also includes a new charge-pipe to intercooler hose, an intercooler to throttle body hose, and a new bypass valve hoses. These 2015 WRX parts negate the need to gather supplies for installation, and they ensure years of reliable service. This 2015 WRX intercooler is available in a durable powder-coated finish of Sleek Silver and Stealth Black, and, like all our 2015 Subaru WRX performance parts, this top-mount intercooler kit includes the Mishimoto Lifetime Warranty.

• Direct fit for the 2015+ Subaru WRX
• Provides 35°F temperature drop compared to stock intercooler on a stage 2 tune
• Proven +15 whp and +8 wtq bolt-on power increase on a stage 2 tune
• 4" thick core with 613.5 in3 of core volume produces optimal heat transfer for vehicles from stock to 500 whp
• 100% aluminum construction with durable cast end tanks TIG-welded to a highly efficient bar-and-plate core
• Intercooler core designed for maximum cooling efficiency and minimal pressure drop
• Includes larger air duct designed to provide optimal airflow to the Mishimoto intercooler core
• Comes with all necessary hardware, clamps, and brackets for an easy installation
• Pre-marked area for NPT sensor
• Cooler available in durable powder-coated Sleek Silver or Stealth Black finish
• CARB Compliant EO#: D-759
• Mishimoto Lifetime Warranty

Mishimoto, the world leader in performance cooling products, is proud to introduce the performance top-mount intercooler for the 2015+ Subaru WRX. ...

Mounting Hardware
Mishimoto Lifetime Warranty

COOLER OVERALL SIZE
24" x 10" x 5"

COOLER CORE SIZE
15" x 10" x 4"

COOLER CONSTRUCTION
Bar-and-plate with cast end tanks

COOLER INLET / OUTLET
Inlet: 2.5" I.D. / 3.0" O.D.
Outlet: 2.5" I.D. / 3.0" O.D.

COOLER FIN SPECS
Internal: 4.7mm fin height, 2.8mm fin pitch
External: 4.7mm fin height, 1.7mm fin pitch

COOLER WEIGHT
24.5 lbs

TANK WALL THICKNESS
3.5mm

INTERCOOLER TO THROTTLE BODY HOSE SPECS
2.75" I.D.
3.15" O.D.
4mm thick

ENGINE CODES
FA20DIT

CHASSIS CODES
VA

NOTE
This kit is rated for 300–450 whp with maximum limits of approximately 500 whp, or 35 psi of turbo boost. Exceeding that horsepower or pressure limit may require a larger front-mount intercooler.

Tuning is not necessary after installing our top-mount intercooler but you will see optimal performance if tuning is performed after the intercooler is installed.

The top-mount intercooler will not fit with the stock engine cover due to its larger size.

CARB COMPLIANT EO#
D-759
