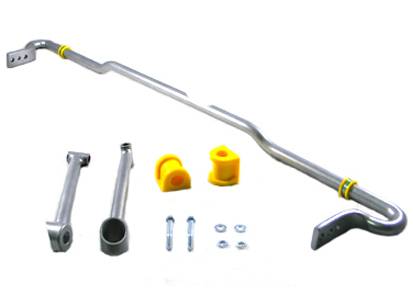

2011-2014 Subaru WRX and STI Whiteline Rear Sway Bar 22mm X Heavy Duty

Whiteline Sway Bar

LOCATION: Rear NOTES: IMPORTANT
Suits models with OEM sway bar - incl KBR15 sway bar mount support brace - 3 point adjustable

PRODUCT BENEFITS
This Whiteline 22mm 3 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. This Whiteline adjustable sway bar allows its rate to be altered by increasing or reducing the length of the lever arms. This permits the roll stiffness to be tuned for different situations without replacing the entire bar. The stiffer the bar, the more force required to move the left and right wheels relative to each other. This increases the amount of force required to make the body roll.

BSR49XZ Kit Specifications
Diameter(mm) Diameter(in) Material Adjustment %Chart
22mm 7/8" Solid spring steel 3 point adjustable BL-281

Comments

BSR49XZ Packaged Weight and Dimensions
Units Weight Length Width Height Fitment Difficulty
cm/kg 5kg 120cm 22cm 15cm
in/lbs 11lbs 47" 9" 6"

VEHICLE APPLICATIONS
SUBARU FORESTER SH MY09-13 INCL TURBO(9/2008-8/2013)
SUBARU FORESTER SJ MY14 INCL TURBO(9/2013-ON)
SUBARU IMPREZA GE SEDAN MY08-11 EXCL WRX & STI(9/2007-8/2011)
SUBARU IMPREZA GJ SEDAN MY12-14 EXCL WRX & STI(9/2011-3/2014)
SUBARU IMPREZA GH HATCH MY08-11 EXCL WRX & STI(9/2007-8/2011)
SUBARU IMPREZA GP HATCH MY12-14 EXCL WRX & STI(9/2011-3/2014)
SUBARU IMPREZA WRX GR, GV SEDAN MY08-11(9/2007-8/2011)
SUBARU IMPREZA WRX GJ SEDAN MY12-14(9/2011-3/2014)
SUBARU IMPREZA WRX VA SEDAN MY15(4/2014-ON)
SUBARU IMPREZA WRX GR, GV HATCH MY08-11(9/2007-8/2011)
SUBARU IMPREZA WRX GP HATCH MY12-14(9/2011-8/2014)
SUBARU IMPREZA STI GV MY08-11(9/2007-8/2011)
SUBARU IMPREZA STI GJ, GP MY12-14(9/2011-2/2014)
SUBARU IMPREZA STI VL9 MY15(3/2014-ON)
SUBARU LEGACY BM SEDAN, BR WAGON MY10 INCL TURBO(2009-ON)
SUBARU LIBERTY BM SEDAN, BR WAGON MY10 INCL TURBO(9/2009-ON)
