1994-2001 Acura Integra Tein Flex Damper Kit

DSA00-6USS1
Pricing: $1,453.50

Qty:
Free Shipping!

Description

Tein Control Master Type Flex Street/Track Damper Kit

TEIN has used its years of experience in various motor sports to produce a kit that provides the ultimate balance between comfort and performance. Developed for drivers seeking an aggressive coilover that can be used daily, and provide all the adjustments needed for circuit use. The FLEX damper Kit features the latest technology for all drivers who are seeking performance, and adjustability, while not giving up all ride comfort. We have incorporated separate spring perch height, and shell case length adjustment, which allows the suspension to retain more stroke and allows for more suspension tuning. The FLEX damper kit includes pillow ball upper mounts, which increase steering response; 16 levels of damping force adjustment, and is compatible with the EDFC (Electronic Damping Force Controller) for added convenience and adjustability.

Made in Japan under strict quality control standards and developed by highly trained suspension engineers.

Additional Features
• Steel Construction
• Twin Tube internal construction
• Ride Height adjustable via threaded body and spring seats
• 16 way adjustable dampers, compression and rebound combined
• Pillow ball upper mounts for increased steering feel
• Upper camber adjustment on front for strut type vehicles
• Larger piston diameter for strut type front and rear (22mm)
• EDFC (Electronic Damping Force Controller) compatible
• Powder coated brackets with Teflon coated shock body for heavy duty rust prevention
• 1-year Manufacturers Defect Warranty

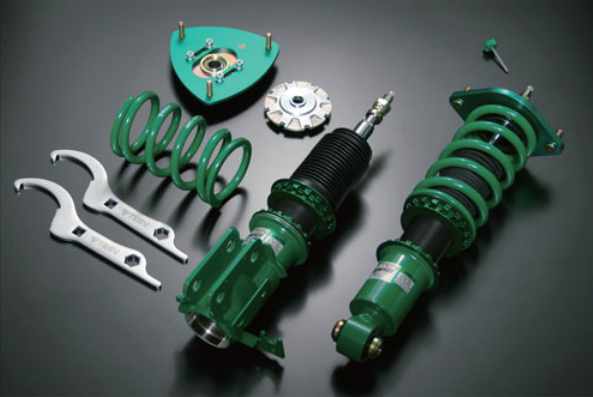

Contents of Damper Kit:
Adjustable Shock Absorber × 4 Bump Rubber × 4
Main Spring × 4 Hook Spanner × 2
Some applications include helper springs Dust Cover × 4
Pillow ball Upper Mount × 4 Instruction Manual × 1
Lower Spring Seat × 4 Sticker Sheet ×x 1
Seat Lock × 12

Upper Mount w/ Camber Adj
Damping Force Adj.
Full Length Adj.
EDFC Comp
Twin Tube Design

Ride Height Range (F) -41.0 / -1.61 to -55.92 / -2.2
Ride Height Range (R) -18.0 / -0.71 to -65.2 / -2.57
Spring Rate (F) 560lbs/in (10kgf/mm)
Spring Rate (R) 390lbs/in (7kgf/mm)
