1988 Honda Civic and CRX (Rear Eyelet) Ksport Gravel Rally Spec GR Damper System

CHD011-GR
Pricing: $1,615.00

Qty:
Free Shipping!

Description

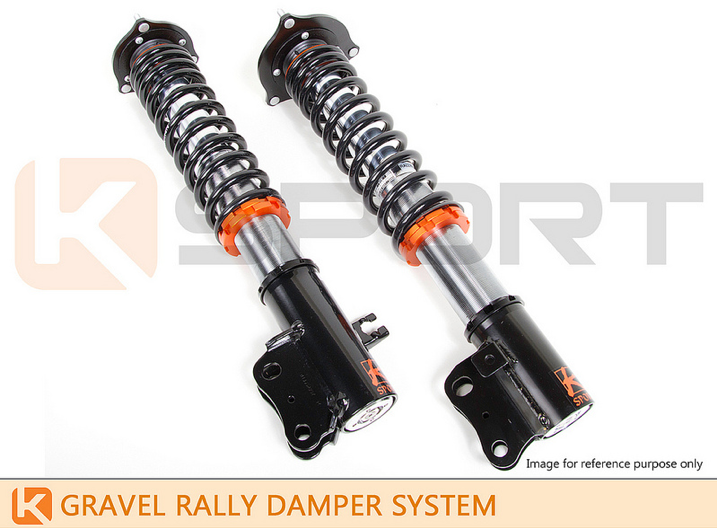

Ksport Gravel Rally Spec GR Damper System

Ksport Rally Spec GR Type Damper System is designed specifically for gravel rally competition. It includes longer stroke, durable construction, and simultaneous compression and rebound adjustment.

36 levels of damping adjustment allow you to fine tune the ride to your handling and comfort needs. The damping adjusts compression and rebound simultaneously for ease of adjustment. Pillow ball top mounts in the front and rear on some applications allow you to maintain vehicle manufacturer suspension geometry design. The pillow ball top mounts also allow you a more direct feel for solid driver response. Camber adjustability is included on pillow ball top mounts that allow it for the ability to adjust camber from the actual coilover, instead of a separate camber kit.

Most applications utilize an adjustable lower mount, which means you adjust height without losing suspension travel like some other coilover designs do. With the mounts and most pieces of the coilover being designed for 6061 billet aluminum the kit is lightweight, durable, and rust resistant. The steel shock body is electroplated with zinc to resist rust and the elements. The valving of each set is matched to the springs installed for unmatched ride quality and reliability.

The Ksport system uses a Monotube design in which the oil and gas are separated within the cylinder. When compared to twin tube designs the Monotube dissipates heat better, allows finer damping adjustments, and requires more expensive design process. Aeration and cavatation are a lot less common in a Monotube design, which results in a better ride.

Key Features

-Special designed springs for rally conditions
-Extended Piston Stroke
-Reinforced internals to withstand extreme track conditions
-36 levels of adjustable damping
-Made from high quality 6061 Aluminum with T6 for increased hardness
-Compression/Rebound adjustable, Adjustable spring perch for height adjustment
-Adjustable body allowing maximum suspension travel
-Pillowball top mount w/ adjustable camber (not available for some models)
-Monotube high pressure design reduces oil leakage
-Electroplated body for protection from corrosion and rust
-One year limited warranty
