Mishimoto proudly announces the all-new 08+ Mitsubishi Evolution X Oil Cooler Kit. Specially designed for your Evo X, this kit features V-mounted dual oil coolers mounted behind the passenger side foglight with a splitter designed for optimal airflow. The Mishimoto Evolution X Oil Cooler Kit maintains optimum oil temperatures without any drop in pressure and comes with a Lifetime Warranty, so you know quality is guaranteed!
Tech Specs:
FEATURES AND BENEFITS
- Direct fit application designed specifically for the Mitsubishi Lancer Evolution X
- Includes two 19 row oil coolers run in series for optimum cooling
- Special engineered mounting brackets also serve as ducting to channel air to coolers
- Adapts to thermostatically controlled OEM oil housing
- Prevents car from going into limp mode under aggressive street or track conditions
INCREASE IN OIL CAPACITY
0.80 Quarts (0.757L)
TEMPERATURE DIFFERENCE
Over 10 degrees
PRESSURE DROP
0 psi
INSTALLATION TORQUE SPECS
15-25 ft/lbs (operating range) for all straight fittings and banjo bolts. Do not exceed the maximum torque rating of 35 ft/lbs. PURCHASE INCLUDES

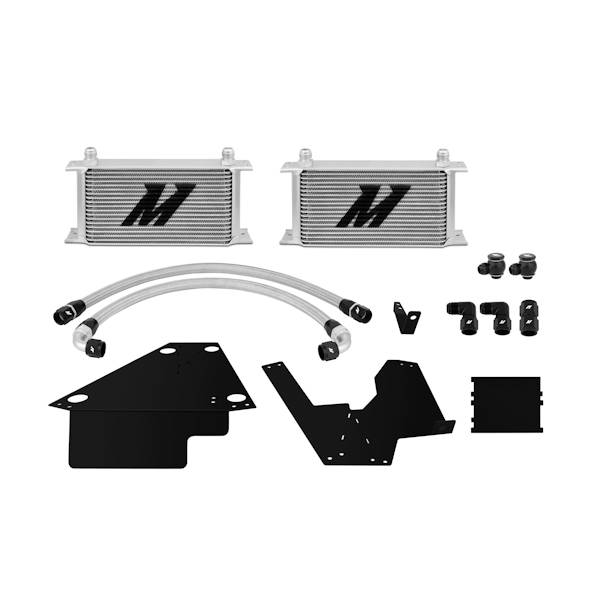

(4) - Application Specific Mounting Brackets
(2) - 19 Row Oil Cooler
(1) - 2ft Stainless Steel Braided Hose w/ -10AN Fittings
(1) - 2ft 1.5in Stainless Steel Braided Hose w/ -10AN Fittings
(2) - 90� -10AN Female to Male Swivel Adapter
(1) - Straight -10AN Female to Female Adapter
(2) - Banjo Fitting w/ Bolt M18 x -10AN, Black
(1) - Mounting Hardware Set
ENGINE CODES
4B11T
CHASSIS CODES
CZ4A
CAUTION
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com
