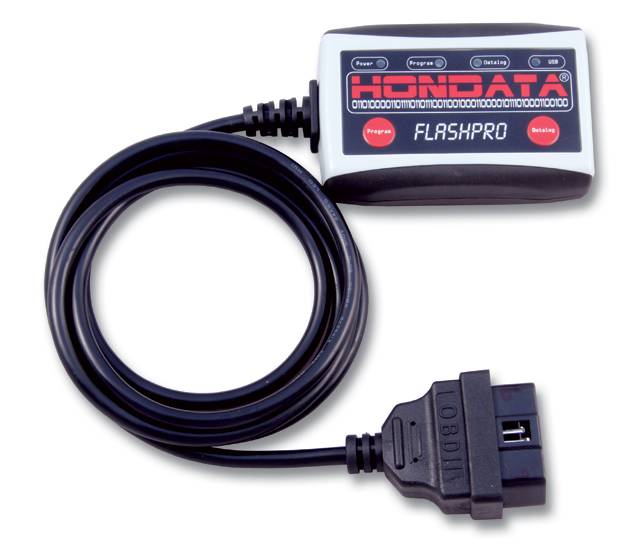

2011+ Honda CR-Z Hondata FlashPro

FP-CRZ-US
Pricing: $695.00
Qty:
Free Shipping!

Description

All Hondata software is available for free download at hondata.com

The FlashPro allows full user tuning and datalogging any CR-Z. It includes Windows based software called FlashPro Manager.



The FlashPro connects from your laptop's USB port to your vehicles diagnostic port to provide real time programming, a variety of calibrations and extensive datalogging capabilities.





Supported vehicles



Vehicle ECU Part Number FlashPro Part Number

2010+ US CR-Z MT and CVT





Features



FlashPro features



Programmable ECU interface.

Connects via OBDII diagnostic port.

USB 2.0 connection

Works with Laptop or Desktop

No ECU modification necessary.

Live tuning

20 hours on board datalogging memory.

FlashProManager Windows software.

Check and clear diagnostic codes.

Customizable laptop gauges.

Readiness codes and smog check status.

Dual calibration storage - upload from one of two calibrations stored in the FlashPro.

CR-Z tuning features



Ignition, fuel, idle speed, table editing.

VTEC window.

MAP sensor based tuning.

Rev and launch limiters.

Map tracing  & lambda overlay.

Choice of either AFM or MAP based fuel tuning.

Expanded fuel ignition and knock tables for forced induction.

4 bar MAP sensor support (43 psi).

Support for larger injectors.

Injector latency / dead time.

Individual cylinder fuel & ignition trim.

Individual cylinder knock control

Starting calibrations for intake, headers, forced induction & larger injectors.

For a more detailed feature lists see the FlashPro help file.



What do I need to run the software?



Laptop or desktop

32 or 64 bit Windows XP, Vista or 7*

USB 2.0 port

Internet Access

* The software will also work on Intel based Macs running Bootcamp with the above specifications. Has been extensively tested and works well.  Parallels and VMWare virtualization software has been tested with no problems found to date.



Training videos



We've put together a series of training videos to describe the function and use of the FlashPro. Some of the videos were shot using pre-release software. Some displayed functions have changed slightly. View the videos in High Definition Full Screen to view the screen shots.



FlashPro Introduction



Hondata's new generation programming tool for the CR-Z.



FlashPro Getting started



This video covers the installation the FlashPro Manager software, the USB drivers, software registration and upload of a calibration.



Live Tuning



Live tuning gives you the ability to tune your Honda or Acura on the fly without switching off the engine. Live tuning simplifies part throttle tuning and significantly reduces the time and cost of tuning your car.



Datalogging and Air fuel ratios



A look a the extensive datalogging capabilities of the FlashPro and the many ways in which to examine your engine data. We touch on the datalogging of the air fuel ratios and how you can use it to adjust your tuning.



Questions and Answers



- Do I need to send my ECU to Hondata?

No. Your ECU does not need to be modified for FlashPro.

- Does it improve the rev hang?

Yes. Revs will drop sooner after gearchange.



- Are there base calibrations?

Yes, for common US intakes and injectors ranging from 270-1300cc.



 - Can it eliminate the second o2 sensor?

Yes. The secondary oxygen sensor is used to monitor the catalytic converter efficiency and assist with closed loop operation. For off road racing use in which a catalytic converter is not desirable, the secondary oxygen sensor can be disabled using the FlashPro Manager software without any negative affect on the tuning or operation of the car.



- Do I need dyno tuning?

It shouldn't be necessary for common part combinations (intake, exhaust), but you still have the option of custom tuning if you wish to get a little more. Camshafts and race headers probably will need tuning to get the most of the them - it will depend on the manufacturer. Dyno tuning is highly recommended for forced induction.



- What about smog?

According to US and CA law the FlashPro is for off road use only. However, if you did smog with you would find the readiness codes supported and complete as long as your emissions systems are intact and working.



- Will this work on more than one vehicle?

The FlashPro is locked to one vehicle. It can be unlocked and transferred to another vehicle by returning the ECU to stock.



- Can I share the calibrations I make for my car?

Yes.



- Do I need the laptop in the vehicle to reflash the ECU?

No. The FlashPro can upload either with or without a laptop.



- So does that mean 1 unit Hondata FlashPro can only work with one ecu or car only? Which mean I can't buy one FlashPro and use it together with a few of my friend's CR-Z?

One ECU and vehicle at a time. You can unlock the FlashPro by returning the ECU to stock, and then transfer to another vehicle.



- Any option of immobilizer control?

The immobilizer can not be disabled. We've implemented a number of features designed to protect the owner of the vehicle from theft, and one of these is not to allow the immobilizer to be disabled. This is going to be much less of an issue than previous products because the ECU does not need to be removed / swapped.



- If the ECU had been reflashed by another maker, can FlashPro still work?

Probably - we could tell you based off the ECU part & serial numbers plus the calibration ID. When you unlock the FlashPro it will only be reflashed back to a stock calibration.



-Will this support a 64-Bit Windows Vista and Windows 7?

Yes.



- Can it control nitrous?

No. However, you can at least control the ignition timing to make nitrous safer.



- Will dealers need a software license?

No. Every FlashPro will come with the full tuning software FlashPro Manager.





All Hondata software is available for free download at hondata.com
