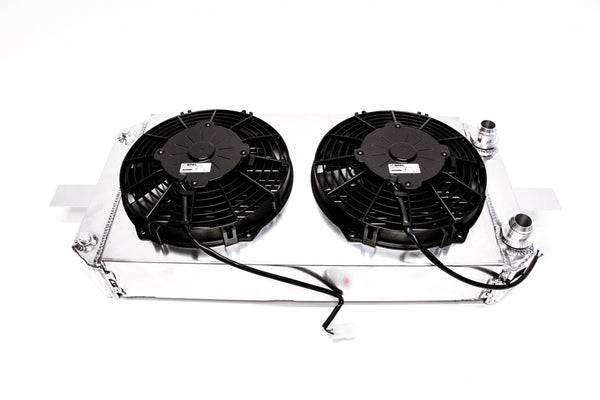

Private Label Mfg. Power Driven Tucked Radiator XL (with 2 Fans) - Honda Acura PLM-RD-TCK-XL-SPAL
A must have if you want to utilize all the engine space and tuck the radiator underneath the radiator support.
Key Features:
- Size: 24" x 11.5" x 4.0" (without fans)
- Size: 24" x 11.5" x 5.5" (with fans)
- SPAL fans on this XL version uses the 9" inch size so it is much larger and flows more cfm!
- Overall length: 30.5" with end brackets.
- Core thickness is 2.25" and the end tanks are 3" thick.
- Mounting brackets are removable & bolted on, so it can be used for other applications.
- Drain plug size is 1/4NPT.
Applications:
- Honda Acura B-Series B20B B20Z B16A B18C1 B18A B18B B18C5
- Honda Acura K-Series K20 K24 K20A K20Z
- May also fit other cars (refer to size dimension above)
Includes:
- 2 x 16AN fittings.
- 2 x slip on fittings.
- Mounting brackets
- Brackets hardware
Installation Note: If you use it for other universal application, it is strongly recommended that you use a set of rubber grommets for vibration isolation. Excessive vibration on the bracket and/or mounting holes can cause breakage.
