Private Label Mfg. Subaru Up Pipe EWG 38mm & Dump Tube (3-Bolt Flange) PLM-SUB-UP-PIPE-EWG-38MM-3B
- 3-bolt flange so it bolts directly to your 3-bolt aftermarket header!
- For EJ-Series turbo engines with aftermarket headers such as Tomei, and other aftermarket headers with 3-bolt inlet flange.
Vehicle Application:
- 2002-2014 WRX
- 2004-2020 STI
- 2004-2006 Baja Turbo
- 2004-2013 Forester XT
- 2005-2009 Legacy GT
- 1991-1994 Legacy Turbo
- 2005-2009 Outback XT
- Does not work for RHD (Right Hand Drive)
- Only fit headers with 3-bolt flange
Features:

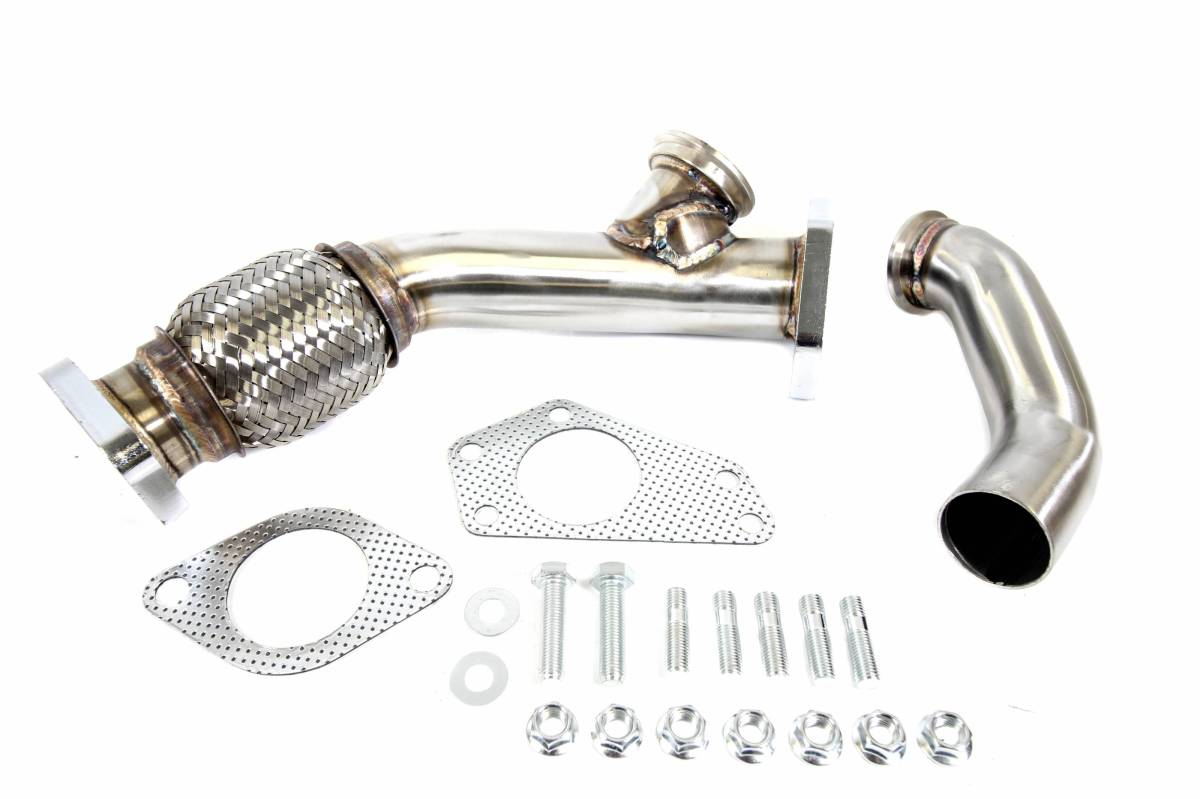

- Includes gaskets & all necessary hardware
- 38mm or 40mm EWG V band with dump tube
- Made of 304 Stainless steel
- One year warranty
- High quality Flex Joint
- 2.0mm piping thickness (vs. 1.5mm other brands)
- Flange is 0.5" thick
- 14 gauge , 304 stainless steel
- Hand TIG welded
- Minimal internal steps for maximum flow
- 1.95" Inlet and 1.95 outlet
- Precision CNC mandrel bend
- 10-40+whp gain
- Reduce turbo lag
- Direct bolt-on unit to the aftermarket 3-bolt flanged header
- Flex joint that is not located at the bend which adds life expectancy to the flex section
- Note: Block off plate is no longer offered as it is not needed with wastegate
