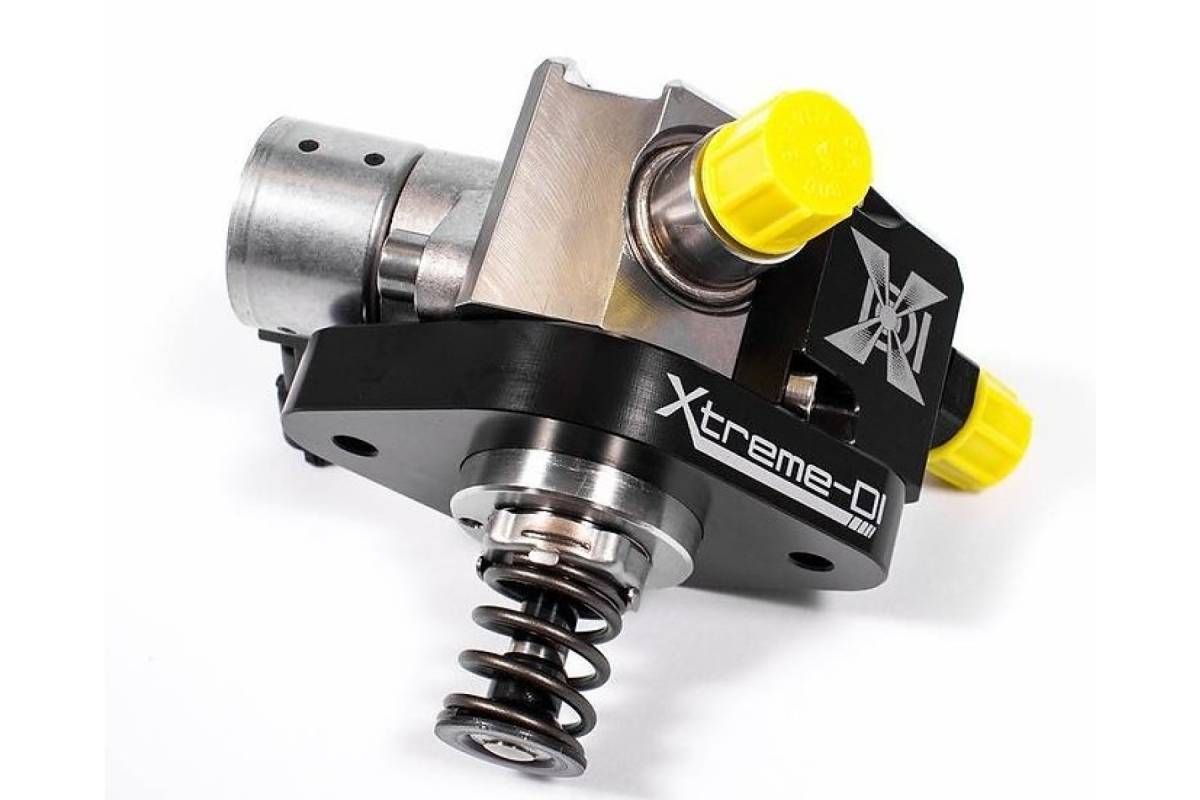

Full Race High-Flow Direct-Injection Fuel Pump XDI-E016-20

The XDI FK8 HPFP is designed to increase horsepower in the Civic Type R or other K20C powered turbocharged Honda/Acura without adding the complexity of port injection. It allows you to increase horsepower while still keeping your car 100% direct injection. If you want an increase in horsepower, this fuel pump allows you to do it safely, supporting conservative air-to-fuel ratios even at high boost levels.

This high-flow direct-injection fuel pump is a simple bolt-on installation. Previously this type of fuel pump needed to be run with Motec ECU and engineering support from XDI. Now, you can set up and configure everything with Hondata FlashPro calibrations, further simplifying the process.

Supporting 480-500hp with stock injectors, upgraded Hondata injectors can support 650hp or more.

ADDITIONAL INFORMATION

• Maximum Rail Pressure: 250bar / 3600psi (+20% over OEM)
• Housing material: stainless steel, hard-coated aluminum
• Roughly 36% more capacity than the OEM Bosch pump
• Springs rated for 7800RPM (OEM rated for only 7200RPM)

APPLICATION INFORMATION

• Fuel compatibility: all fuels and all ethanol blends
• Electric connector: Bosch compact 2-pin
• Additional accessories: electric pigtail and hardware
• Driver profile: XDI, Hondata FlashPro integrated

INSTALLATION NOTES

• For Hondata users, XDI provides a code with your purchase that will unlock the Hondata XDI HPFP calibration in the FlashPro software.
• XDI FK8 Fuel Injectors are available by request. Calibration for the XDI injectors is not included with Hondata FlashPro at this time.
