2017-2021 Honda Civic Type-R MAPerformance Intake - World Rally Blue

2017-2021 Honda Civic Type-R MAPerformance Intake - World Rally Blue

It started by mapping the area left when removing the factory airbox, and set out to design a semi-enclosed airbox that would protect the filter from the heat of the engine bay, but not restrict any flow. While utilizing the largest K&N filter it could fit, a designed box and custom billet velocity stack to place the filter in the optimal position to create a swirl of air entering the box and allowing cool air to be pulled into all areas of the filter.

With this a box was build that bolted in with no modification utilizing factory bolt locations, then sealed that box to the hood and utilized the factory air box inlet to feed the box with cool air. From the box and velocity stack, it then feed the in house TIG welded 304 Stainless intake tube that creates a smooth transition, that matches the size of the factory MAF housing and feeds the factory cast turbo inlet.

This whole package has a unique look, utilizes the highest flowing components that can fit into the factory allotted area decreasing restrictions, increasing airflow, and adding that ever needed intake volume missing from the factory intake!

Features:

• Custom Billet Aluminum Velocity Stack
• Large High Flow K&N Filter
• All 304 Stainless Construction
• Large Semi Sealed Airbox
• Direct bolt-in design

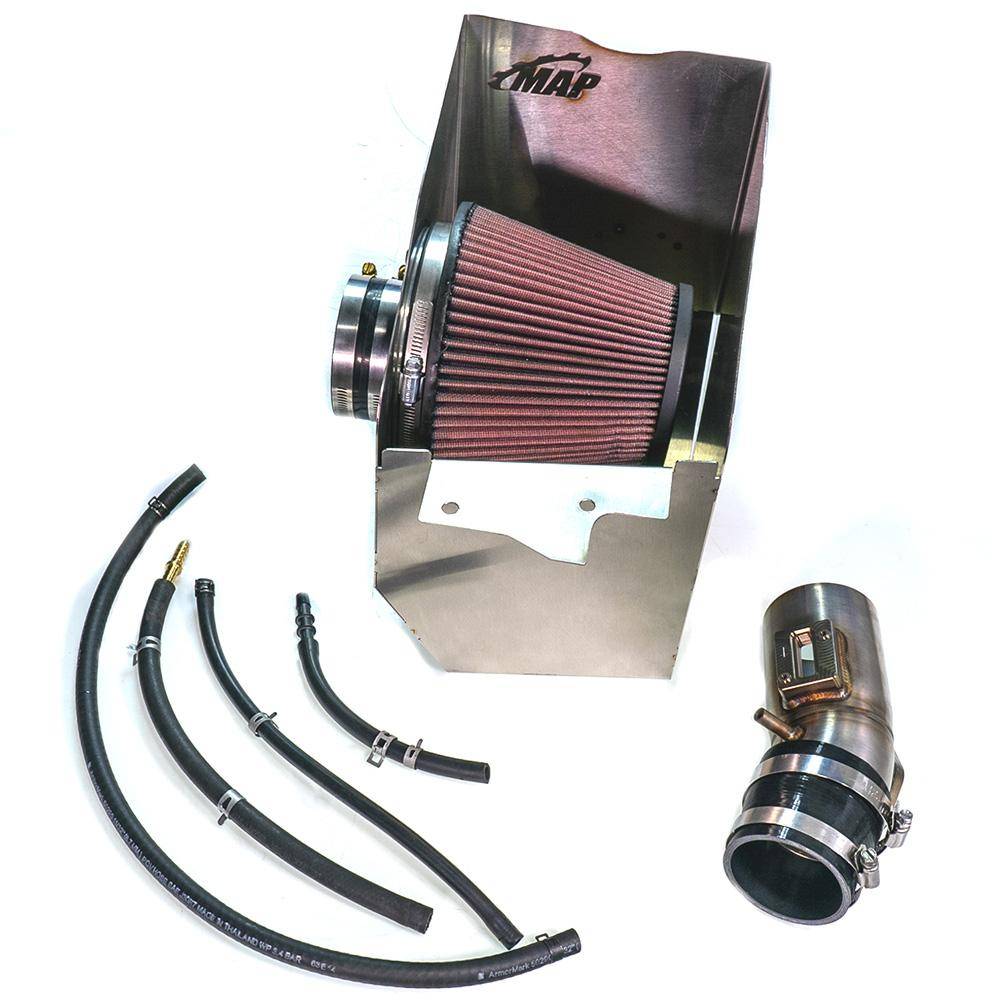

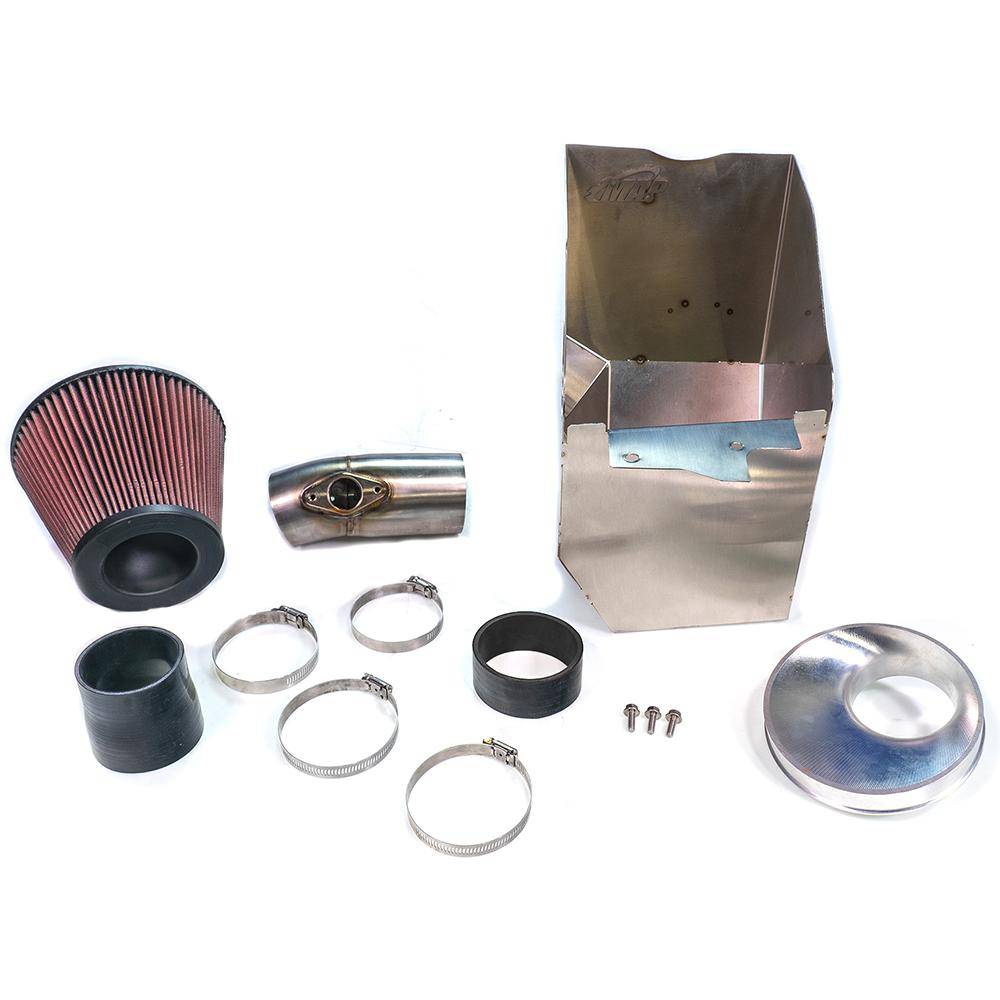

Includes:

• 1 - MAP Intake Box w/rubber molding
• 1 - MAP Intake Tube
• 1 - MAP FK8 Velocity Stack
• 1 - K&N Filter
• 1 - Tube to Turbo Inlet Coupler
• 1 - Velocity Stack to Intake Tube Coupler
• 1 - Coolant Hose
